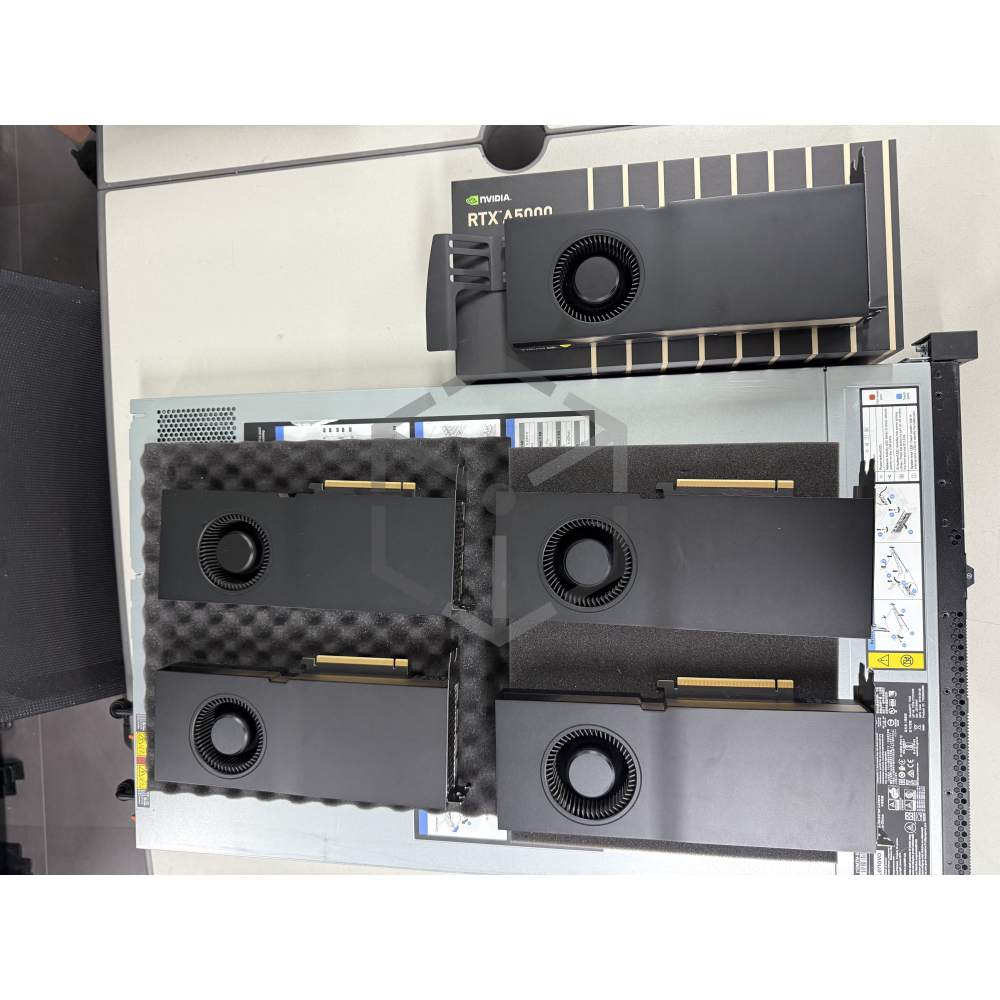

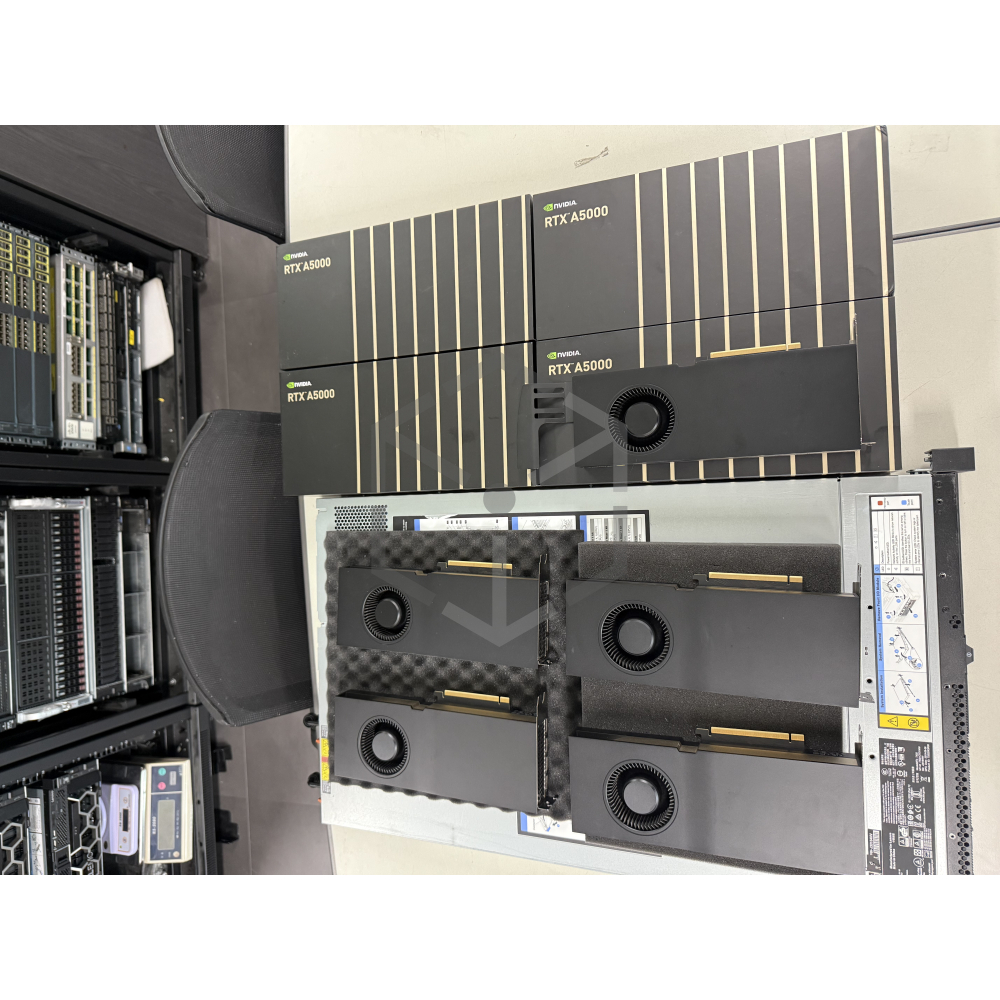

Nvidia Quadro RTX A5000 24G

MPN: 900-5G132-1700-000, 900-5G132-2500-000, 900-5G132-2200-000, 900-5G132-2500-001


Professional Grade Performance with Ampere Architecture

Nvidia RTX A5000은 전문가용 워크스테이션을 위한 고성능 GPU로 Ampere 아키텍처를 기반으로 설계되었습니다. 8192개의 CUDA Cores와 24GB GDDR6 메모리를 통해 복잡한 3D 렌더링, 대규모 데이터 세트 처리, 딥러닝 학습 및 영상 편집 작업에서 압도적인 성능을 발휘합니다. ECC 메모리 지원으로 데이터 무결성을 보장하며 안정적인 작업 환경을 제공합니다.

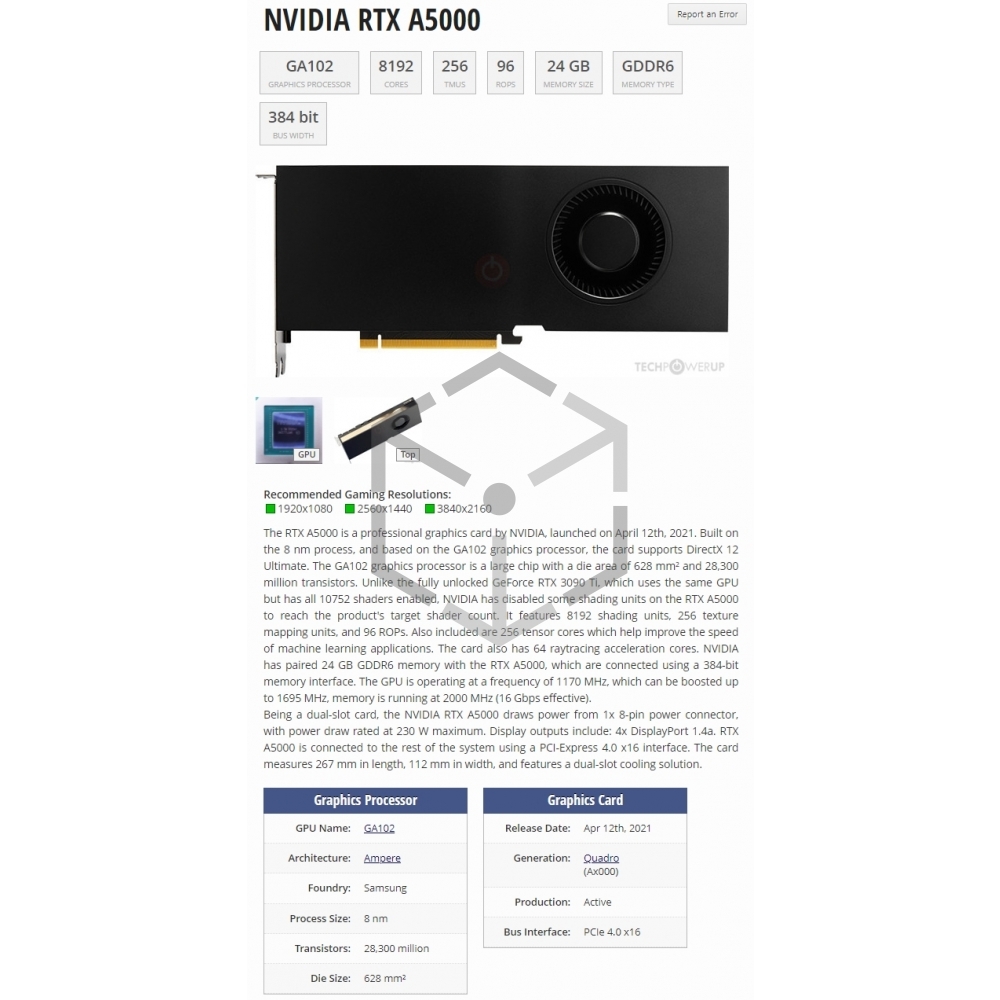

Description:
Graphics Processor: GA102
Cores: 8192
TMUs: 256
ROPs: 96
Memory Size: 24 GB
Memory Type: GDDR6
Bus Width: 384 bit

Graphics Processor
GPU Name: GA102
GPU Variant: GA102-850-A1
Architecture: Ampere
Foundry: Samsung
Process Size: 8 nm
Transistors: 28,300 million
Die Size: 628 mm2

Graphics Card
Release Date: Apr 12th, 2021
Generation: RTX A-Series
Predecessor: Quadro RTX 5000
Bus Interface: PCIe 4.0 x16

Clock Speeds
Base Clock: 1170 MHz
Boost Clock: 1695 MHz
Memory Clock: 2000 MHz (16 Gbps effective)

Memory
Memory Size: 24 GB
Memory Type: GDDR6
Memory Bus: 384 bit
Bandwidth: 768.0 GB/s

Render Config
Shading Units: 8192
TMUs: 256
ROPs: 96
SM Count: 64
Tensor Cores: 256
RT Cores: 64
L2 Cache: 6 MB

Theoretical Performance
Pixel Rate: 162.7 GPixel/s
Texture Rate: 433.9 GTexel/s
FP16 (half): 27.77 TFLOPS
FP32 (float): 27.77 TFLOPS
FP64 (double): 867.8 GFLOPS

Board Design
Slot Width: Dual-slot
Length: 267 mm
Height: 112 mm
TDP: 230 W
Suggested PSU: 550 W
Outputs: 4x DisplayPort 1.4a
Power Connectors: 1x 8-pin
