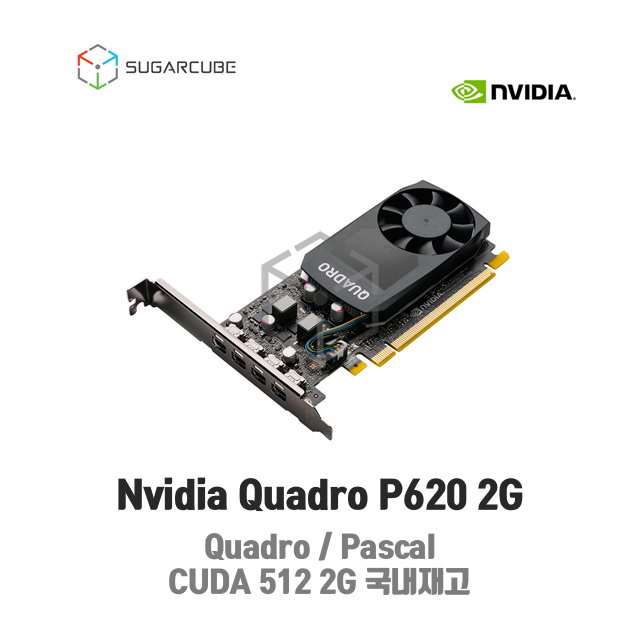

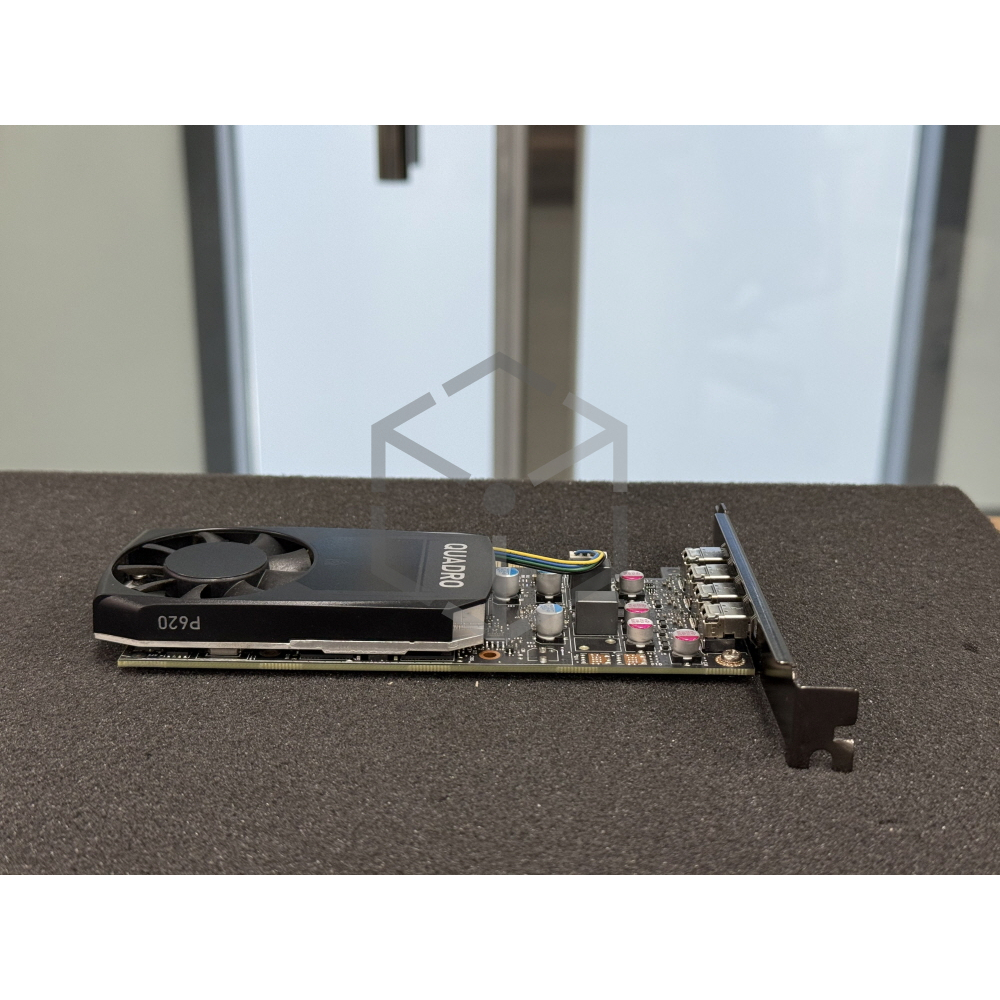

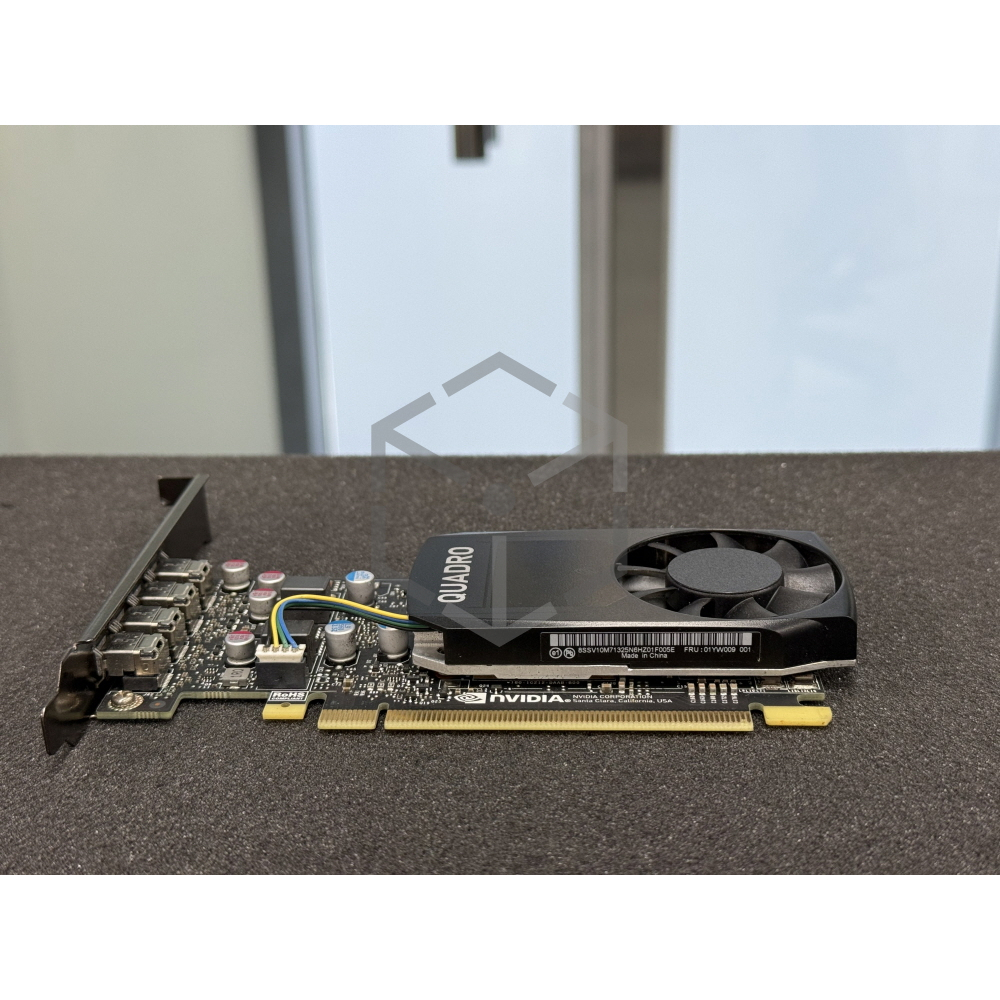

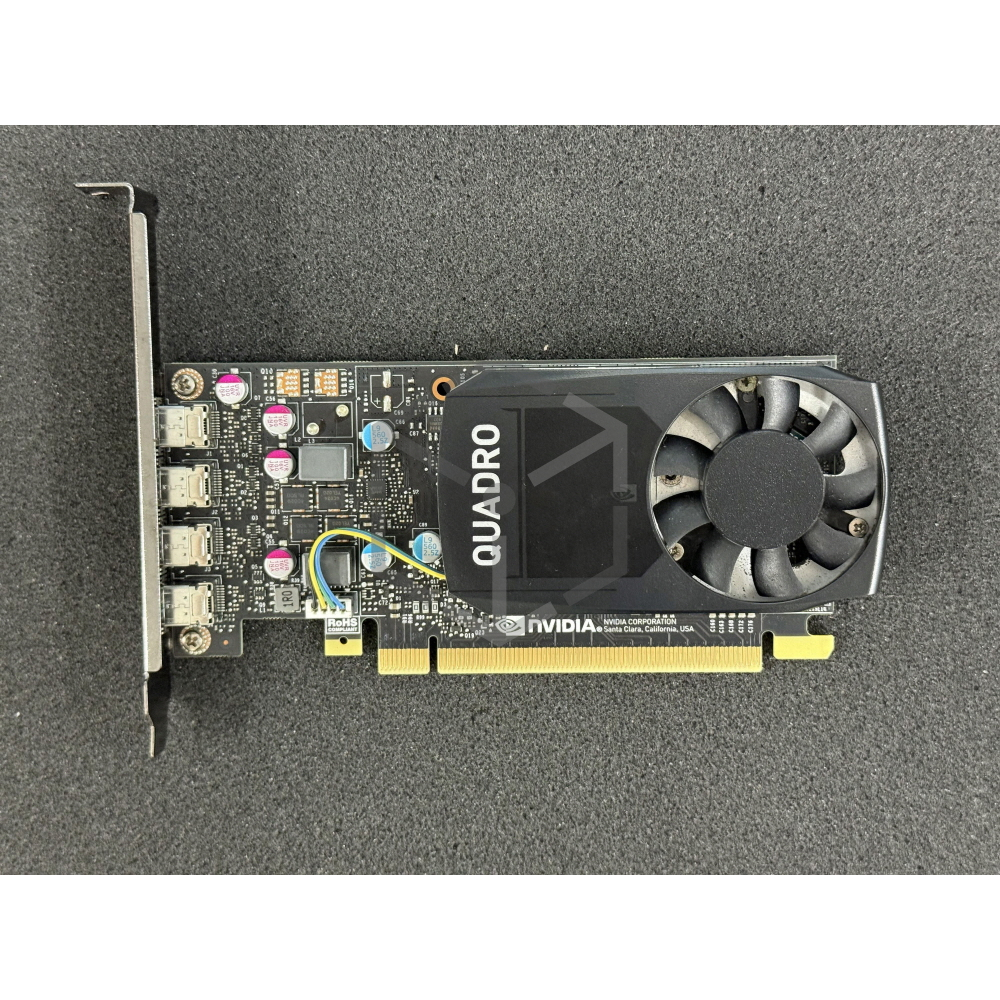

Nvidia Quadro P620 2G

MPN: 900-5G410-2500-000, 900-5G410-2550-000


Professional Performance in a Compact Form Factor

Nvidia Quadro P620은 Pascal 아키텍처를 기반으로 설계된 전문가용 그래픽카드입니다. 512개의 CUDA Cores와 2GB GDDR5 메모리를 탑재하여 2D 디자인 및 영상 편집 환경에서 효율적인 성능을 보장합니다. 슬림한 싱글 슬롯 디자인으로 공간 활용성이 높으며 4개의 Mini DisplayPort를 통해 고해상도 멀티 모니터 환경을 완벽하게 지원합니다.


Description:
Graphics Processor: GP107
Cores: 512
TMUs: 32
ROPs: 16
Memory Size: 2 GB
Memory Type: GDDR5
Bus Width: 128 bit

Graphics Processor
GPU Name: GP107
GPU Variant: GP107-825-A1
Architecture: Pascal
Foundry: Samsung
Process Size: 14 nm
Transistors: 3,300 million
Die Size: 132 mm²
Chip Package: FCPBGA-1099

Graphics Card
Release Date: Feb 1st, 2018
Generation: Quadro Pascal
Predecessor: Quadro P600
Successor: Quadro T600
Production: End-of-life
Bus Interface: PCIe 3.0 x16

Clock Speeds
Base Clock: 1266 MHz
Boost Clock: 1354 MHz
Memory Clock: 1253 MHz

Memory
Memory Size: 2 GB
Memory Type: GDDR5
Memory Bus: 128 bit
Bandwidth: 80.19 GB/s

Render Config
Shading Units: 512
TMUs: 32
ROPs: 16
SM Count: 4
L1 Cache: 48 KB
L2 Cache: 1024 KB

Theoretical Performance
Pixel Rate: 21.66 GPixel/s
Texture Rate: 43.33 GTexel/s
FP16 (half): 21.66 GFLOPS
FP32 (float): 1.386 TFLOPS
FP64 (double): 43.33 GFLOPS

Board Design
Slot Width: Single-slot
Length: 145 mm
Height: 69 mm
TDP: 40 W
Suggested PSU: 200 W
Outputs: 4x mini-DisplayPort 1.4

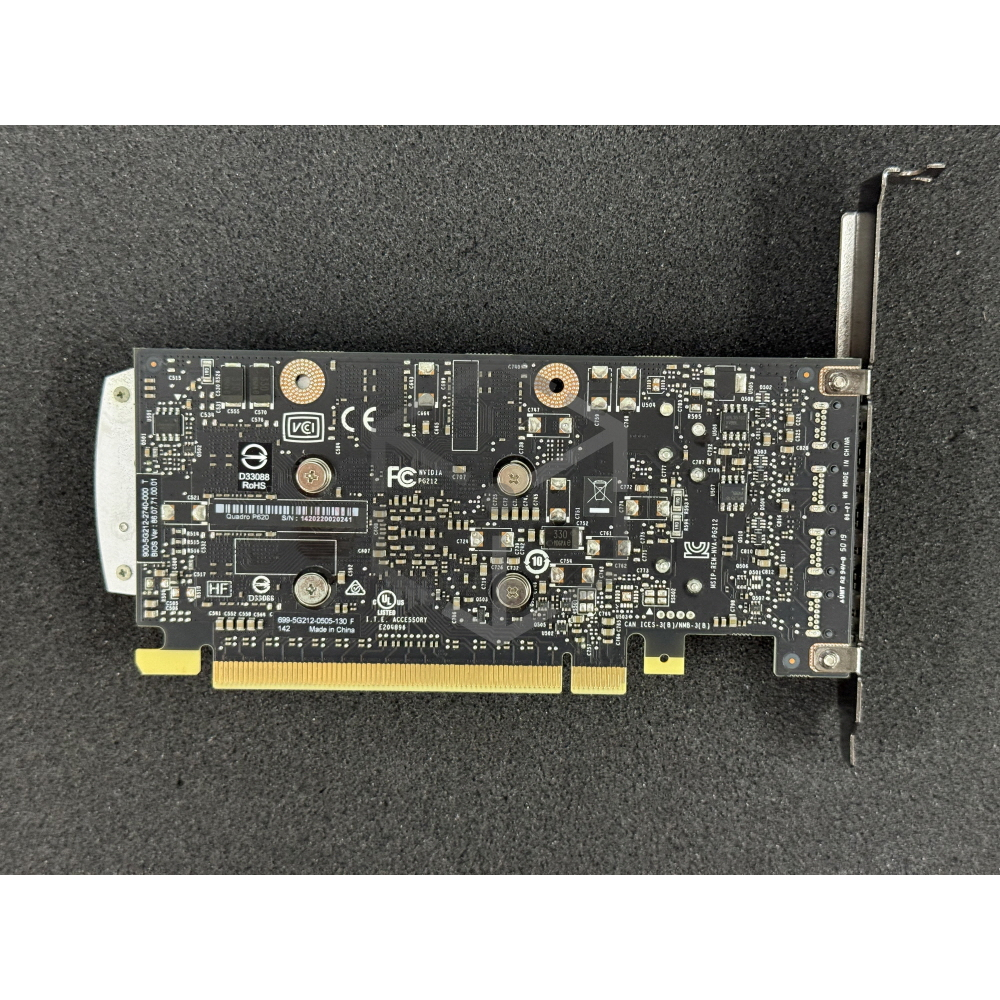

Board Number: PG107-R10
